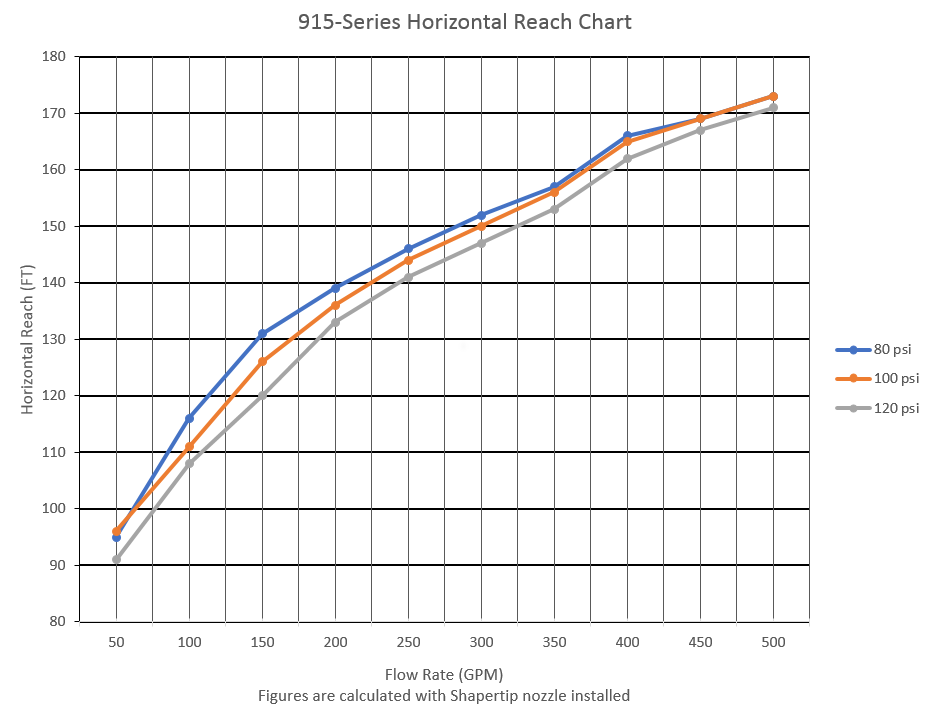

915 reach chart.PNG
915 Manual Red_forweb.jpg
915 reach chart.PNG

1.5” Station Monitor

$0.00

  • 1.5” Waterways

  • Up To 350GPM

  • 360° Full Rotation

  • Locking Swivels

STL Model: 915050-XX

SS Model: 915010-XX

configuration chart below

Inlet Connection:
Quantity:
Add To Cart

FEATURES + UPGRADES

OUTLET

  • 1.5” NH (Male) Thread

HANDLE

  • Tiller Bar (Standard)

FINISH

  • Powder Coat ‘Fire Safety Red’

  • Polished (Stainless Steel Only)

    *Custom Colors Available Upon Request

WATERWAY MATERIAL CHOICES

  • Carbon Steel - Model: 915050-XX

  • Stainless Steel 304 - Model: 915010-XX

*Stainless Steel 316 Available Upon Request

TECHNOLOGY

Proven and tested, the 1.5” Station Monitor packs a punch, delivering a water jet stream over 130ft [40m].

By using 1.5” waterways, our 1.5” Station Monitor is most efficient at flow rates up to 350GPM [1325l/min] and easily maneuverable thanks to its perfectly balanced, light-weight design.

Stang Station Monitor’s feature locking vertical and horizontal swivels delivering motion range from full 360° horizontal rotation and +70/-20 range of vertical motion. Operating from the tiller bar handle helps take control of both the horizontal and the vertical location of the monitor. Each swivel features a locking knob that will turn and lock the swivel in place to secure the 1.5” station monitor in position. Grease fittings are included on each swivel joint for easy maintenance.

Because of its relatively small footprint, the 1.5” Station Monitor seamlessly installs onto; Construction Trucks, Marine Craft, Standpipes, Industrial Sites or anywhere space is limited.

Configuration Chart:

# Model Type Inlet
Connection		 Outlet
Connection		 Flow
GPM		 Pressure
PSI		 Material
1 ½” 915050-1 Station 1 ½” ANSI 150# RF 1 ½” NH (M) Thread 15 - 350 50 - 150 Steel
25mm 915050-11 Station 2 ½” ANSI 150# RF 1 ½” NH (M) Thread 15 - 350 50 - 150 Steel
915050-21 Station 3” ANSI 150# RF 1 ½” NH (M) Thread 15 - 350 50 - 150 Steel
915050-31 Station 4” ANSI 150# RF 1 ½” NH (M) Thread 15 - 350 50 - 150 Steel
915050-41 Station 1 ½” NPT (M) Thread 1 ½” NH (M) Thread 15 - 350 50 - 150 Steel
915050-51 Station 1 ½” NPT (F) Thread 1 ½” NH (M) Thread 15 - 350 50 - 150 Steel
915050-61 Station 1 ½” ANSI 150# FF 1 ½” NH (M) Thread 15 - 350 50 - 150 Steel
915050-71 Station 2 ½” ANSI 150# FF 1 ½” NH (M) Thread 15 - 350 50 - 150 Steel
915050-81 Station 3” ANSI 150# FF 1 ½” NH (M) Thread 15 - 350 50 - 150 Steel
915050-91 Station 4” ANSI 150# FF 1 ½” NH (M) Thread 15 - 350 50 - 150 Steel
1 ½” 915010-1 Station 1 ½” ANSI 150# RF 1 ½” NH (M) Thread 15 - 350 50 - 150 304SS
25mm 915010-11 Station 2 ½” ANSI 150# RF 1 ½” NH (M) Thread 15 - 350 50 - 150 304SS
915010-21 Station 3” ANSI 150# RF 1 ½” NH (M) Thread 15 - 350 50 - 150 304SS
915010-31 Station 4” ANSI 150# RF 1 ½” NH (M) Thread 15 - 350 50 - 150 304SS
915010-41 Station 1 ½” NPT (M) Thread 1 ½” NH (M) Thread 15 - 350 50 - 150 304SS
915010-51 Station 1 ½” NPT (F) Thread 1 ½” NH (M) Thread 15 - 350 50 - 150 304SS
915010-61 Station 1 ½” ANSI 150# FF 1 ½” NH (M) Thread 15 - 350 50 - 150 304SS
915010-71 Station 2 ½” ANSI 150# FF 1 ½” NH (M) Thread 15 - 350 50 - 150 304SS
915010-81 Station 3” ANSI 150# FF 1 ½” NH (M) Thread 15 - 350 50 - 150 304SS
915010-91 Station 4” ANSI 150# FF 1 ½” NH (M) Thread 15 - 350 50 - 150 304SS

DWG-1.5.1
