6.0" Station Monitor
6.0" Station Monitor
Stang’s largest manually operated cannon, the 960 Station Monitor can flow 7,500 gallons per minute at 150 psi. The 960 enjoys the balance and ease of movement as its smaller cousins and is built for years of constant use.
Delivering up to 7,500 GPM to a range of 450-feet, the 960 Station Monitor is used where there is a large source of fuel for potential fires, such as found in petrochemical plants and offshore vessels. Access to a large water source is crucial, but if you have it, the 960 will not fail. Trailer- and skid-mounted 960’s are very popular and versatile options to consider.
TECHNOLOGY
The 960 Station Monitor uses American milled, hand-welded, seamless, 6.0-inch diameter Schedule 40 piping and consists of three sections: the intake base, lower ell, and the upper ell. The intake base is available in many configurations and provides the foundation for the first swivel, the horizontal axis swivel. This swivel rotates a full 360-degrees and is very well balanced. The lower ell makes a 90° turn into the upper ell, which incorporates the vertical swivel and the Bladelock swivel brake mechanism. The vertical swivel has a +/- range of 70°/20° and is designed to spin clean while under pressure even with the weight of a heavy nozzle.
TYPICAL CONFIGURATION

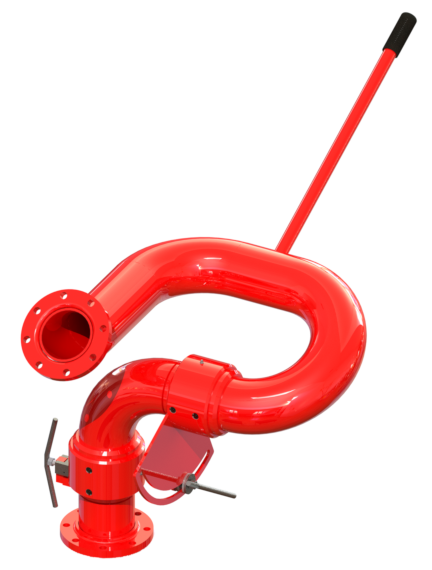

6.0” raised face 150# ANSI flanged inlet, 4.0” NH outlet, tiller bar, Bladelock, carbon steel, powder coated red
OPTIONS
INLET
6.0” raised or flat face 150# ANSI flange
8.0” raised or flat face 150# ANSI flange
Custom inlets available
OUTLET
4.0” NH thread (NST)
6.0” raised face 150# ANSI flange
Custom threads or flanges available
HANDLE
Tiller bar, welded
Tiller bar w/counterweight, welded
Brass handwheels
SWIVEL BRAKES
Bladelock/lock knob combo
MATERIAL
Carbon steel w/aluminum-bronze inner swivels and outlet thread
304 stainless steel w/aluminum-bronze inner swivels and outlet thread
316 stainless steel w/aluminum-bronze inner swivels and outlet thread
FINISH
Powder coat red internal and external

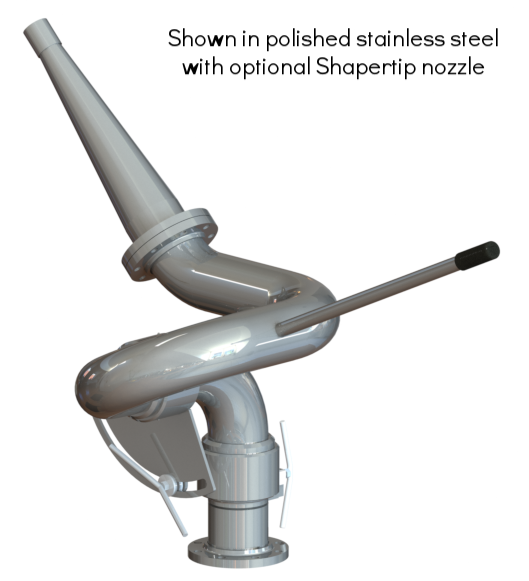

Polished (stainless steel only)
Custom powder coat color
FEATURE LIST
• Heavy duty build
• Superior jet stream
• Full 360° horizontal rotation
• 90° total vertical range
• Each water tight swivel has two rows of stainless steel bearings for stability and ease of motion
• Two zerk fittings on both swivels for easy maintenance
• Hand welded joints
• Hydrostatically tested to 300 PSI for 5-minutes, minimum
