The 925 Remote Control Super-Low-Profile Monitor (RCM) is perfectly adaptable to most any application.  The 925 RCM seamlessly installs on construction trucks, marine craft and industrial sites where remote manipulation is necessary.  The standard 925 RCM is controlled via a tethered control box with a single joystick.  Options include nozzle and valve controls, as well as true wireless and Bluetooth control signals.  Full programming is also available from basic oscillating sweeps to complex movements and cycles, offering semi-autonomous operation.  AC, DC, and hydraulic power options are offered.  Monitor control software for your smart phone or tablet are now available!

TECHNOLOGY

Rated for severe duty, the 925 RCM is durable enough for the task at hand.  Using U.S. sourced seamless Schedule 40, 2.5-inch diameter piping, the 925 RCM consists of three sections: the intake base, lower ell, and the upper ell.  The intake base is available in many configurations and provides the foundation for the first swivel, the horizontal axis swivel.  This swivel rotates 330° and houses the first of two industrial electric or hydraulic motors.  The upper ell incorporates the vertical swivel, second motor and the monitor's outlet.  The vertical swivel has a +/- range of 85°/60°.  Using movable environmentally sealed proximity sensors, each swivel’s travel can be easily adjusted to fit your specific application.

TYPICAL CONFIGURATION

2.5" Remote SLP Monitor, 12VDC, 2.5" Raised Face Flange Inlet, 2.5" NH Outlet, Proximity Switches, 304 Stainless Steel, Red
Note: New installations require a monitor control module, which is not included with monitor.


OPTIONS

POWER

Electric 12 or 24VDC (explosive atmospheres certification available)
Electric AC with multiple voltages available (explosive atmospheres certification available)
Hydraulic (low pressure)

INLET

2.5” raised or flat face 150# ANSI flange
3.0” raised or flat face 150# ANSI flange
4.0” raised or flat face 150# ANSI flange
2.5” NPT male or female
Custom threads or flanges available

OUTLET

2.5” NH thread (NST)
Custom threads or flanges available

SWIVEL BRAKES

Physical hard stops
Electric proximity switches

MATERIAL

304 stainless steel
316 stainless steel
316L stainless steel

FINISH

Powder coat red internally & externally

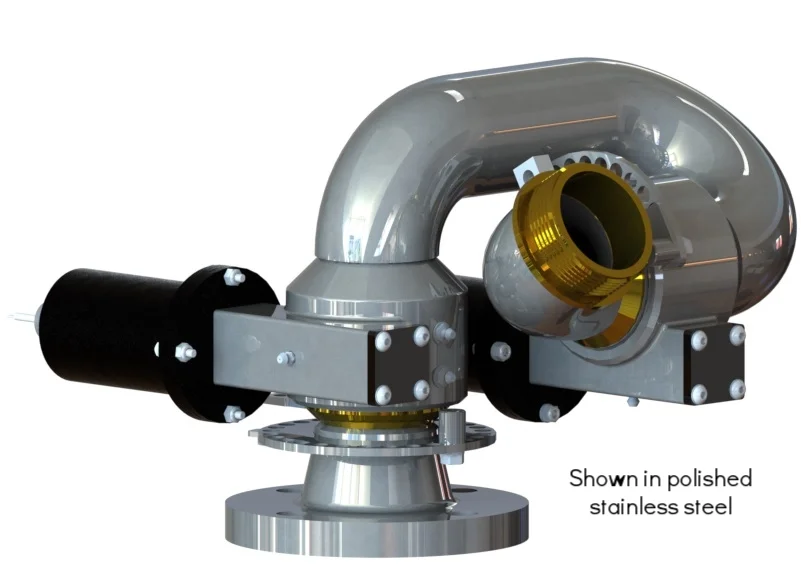

Hand polished

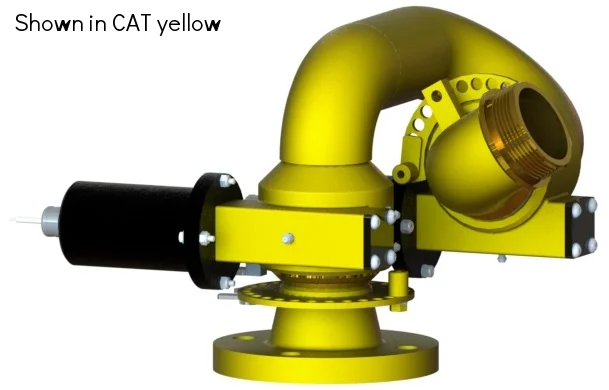

Custom powder coat colors available

CONTROLS

All options below can be ordered for multiple monitor control and with custom programming.

•    Tethered (single monitor control)
•    Tethered w/Remote Fog Nozzle Controls (single monitor control)
•    Tethered w/Water Valve Controls (single monitor control)
•    Tethered w/Remote Fog Nozzle & Water Valve Controls (single monitor control)
•    Wireless
•    Bluetooth (apps available for your smart phone and tablet, too!)

FEATURE LIST

•    Lightweight
•    Super-low-profile upper waterway design
•    330° horizontal rotation
•    145° vertical range
•    Four adjustable proximity (limit) switches
•    Very well balanced
•    Each swivel has two rows of stainless steel ball bearings for stability and easy of motion
•    Two zerk fittings on both swivels for easy maintenance
•    Industrial powder coating for corrosion and abrasion protection, applied internally and externally
•    Robust, hand welded joints
•    Simple, intuitive control system
•    Easily replaceable motors and switches
•    Options for remote nozzle and water valve controls
•    Hydrostatically tested to 300 PSI for 5-minutes, minimum
